Flax Sleeve

Flax Sleeve

Flax sleeves are suitable for the production of profiles of any kind, as spars or other hollow constructions, whereby a suitable application process ensures that the force-absorbing reinforcing fibre of the flax sleeve is free of air bubbles, all-over and seamless - thus without loss of strength - even around the edge of the shaping core and is sufficiently impregnated with the resin system used. For high torsional or shear strength, a 45° angle is optimal. The diameter of the flax braided sleeve can be changed by stretching or compressing, but the fibre angle should ideally be between 30° and 60°. Reinforcement in the 0° direction can be achieved with so-called UD threads, which are also braided in. Another material can certainly be used for this purpose.
As a natural fibre, flax sleeves are 100% recyclable and offer a comparably high tensile strength as glass fibre sleeves despite their lower weight.
Flax sleeves can be processed into natural fibre composites by embedding them in epoxy or polyester matrices.

ATTENTION!
We are happy to offer you all other dimensions between 0.1mm and 500mm on request.
The articles listed here only serve as an example of some dimensions.

Article number     Diameter/45°              Wall thickness  Weight KG/100m        Weight KG/m²
7102                       10                                  1,00                    0,99                               0,42
7735                       22                                  0,80                    2,10                               0,39
7693                       38                                  0,67                    1,23                               0,14
6560                       50                                  0,65                    3,09                               0,27
7052                       105                                0,80                    8,16                               0,32

Article number Diameter/45° Wall thickness Weight KG/100m Weight KG/m²
7102 10 1,00 0,99 0,42
7735 22 0,80 2,10 0,39
7693 38 0,67 1,23 0,14
6560 50 0,65 3,09 0,27
7052 105 0,80 8,16 0,32

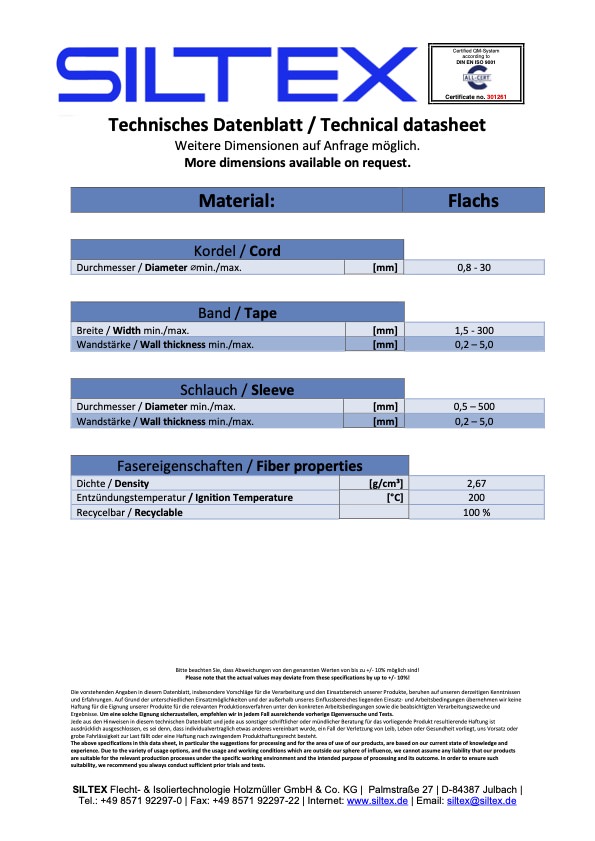

Flachs Datenblatt-Bild
